LGG 60 cable ladder, L-profile, height = 60 mm

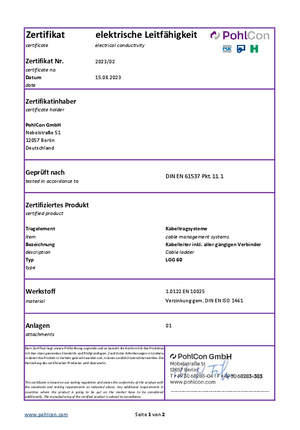

Cable ladder with continuously perforated side beams. Welded rungs made of profile rail 30x15 mm. Electrical conductivity tested according to DIN EN 61537.

This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.

Do not walk upon!

UL classified

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

	height	width	length	A cross section area	Q_LKdistributed load power cable	weight
LGG 60-30-3S	60 mm	300 mm	3000 mm	122 cm²	0,34 kN/m	8,61 kg
LGG 60-40-3S	60 mm	400 mm	3000 mm	162 cm²	0,45 kN/m	9,3 kg
LGG 60-50-3S	60 mm	500 mm	3000 mm	203 cm²	0,57 kN/m	9,98 kg
LGG 60-60-3S	60 mm	600 mm	3000 mm	243 cm²	0,68 kN/m	10,67 kg
LGG 60-20S	60 mm	200 mm	6000 mm	81 cm²	0,23 kN/m	15,84 kg
LGG 60-30S	60 mm	300 mm	6000 mm	122 cm²	0,34 kN/m	17,22 kg
LGG 60-40S	60 mm	400 mm	6000 mm	162 cm²	0,45 kN/m	18,59 kg
LGG 60-50S	60 mm	500 mm	6000 mm	203 cm²	0,57 kN/m	19,96 kg
LGG 60-60S	60 mm	600 mm	6000 mm	243 cm²	0,68 kN/m	21,34 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	length	A cross section area	Q_LKdistributed load power cable	weight
LGG 60-30-3F	60 mm	300 mm	3000 mm	122 cm²	0,34 kN/m	9,21 kg
LGG 60-40-3F	60 mm	400 mm	3000 mm	162 cm²	0,45 kN/m	9,95 kg
LGG 60-50-3F	60 mm	500 mm	3000 mm	203 cm²	0,57 kN/m	10,68 kg
LGG 60-60-3F	60 mm	600 mm	3000 mm	243 cm²	0,68 kN/m	11,42 kg
LGG 60-20F	60 mm	200 mm	6000 mm	81 cm²	0,23 kN/m	16,95 kg
LGG 60-30F	60 mm	300 mm	6000 mm	122 cm²	0,34 kN/m	18,42 kg
LGG 60-40F	60 mm	400 mm	6000 mm	162 cm²	0,45 kN/m	19,89 kg
LGG 60-50F	60 mm	500 mm	6000 mm	203 cm²	0,57 kN/m	21,36 kg
LGG 60-60F	60 mm	600 mm	6000 mm	243 cm²	0,68 kN/m	22,83 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

	height	width	length	A cross section area	Q_LKdistributed load power cable	weight
LGG 60-30-3E	60 mm	300 mm	3000 mm	122 cm²	0,34 kN/m	8,66 kg
LGG 60-40-3E	60 mm	400 mm	3000 mm	162 cm²	0,45 kN/m	9,35 kg
LGG 60-50-3E	60 mm	500 mm	3000 mm	203 cm²	0,57 kN/m	10,05 kg
LGG 60-60-3E	60 mm	600 mm	3000 mm	243 cm²	0,68 kN/m	10,74 kg
LGG 60-20E	60 mm	200 mm	6000 mm	81 cm²	0,23 kN/m	15,95 kg
LGG 60-30E	60 mm	300 mm	6000 mm	122 cm²	0,34 kN/m	17,33 kg
LGG 60-40E	60 mm	400 mm	6000 mm	162 cm²	0,45 kN/m	18,71 kg
LGG 60-50E	60 mm	500 mm	6000 mm	203 cm²	0,57 kN/m	20,09 kg
LGG 60-60E	60 mm	600 mm	6000 mm	243 cm²	0,68 kN/m	21,47 kg
