Assembly covers made of Sendzimir hot-dip galvanized sheet steel for latching to the side profile of the bottom part of the cable duct including turning bolt. Usable as pull- and installation box, with one opening for insertion of a shuttering unit that will be replaced with a rectangular assembly unit during final assembly.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)

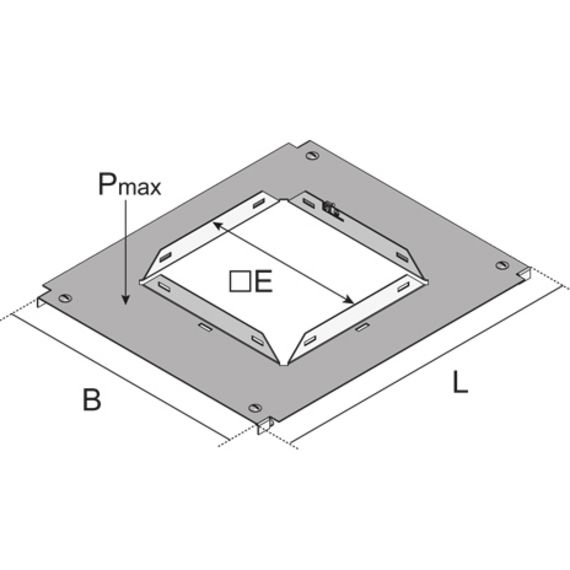

width | length | E fitting dimension | PmaxMaximum load | mounting box Maximum number of installable device casings. | weight | |||
---|---|---|---|---|---|---|---|---|
UKDA-260V 40S | 400 mm | 495 mm | 262 x 262 mm | 0,75 kN | 3 | 2,03 kg | ||
UKDA-260V 50S | 500 mm | 595 mm | 262 x 262 mm | 0,75 kN | 3 | 3,29 kg |
