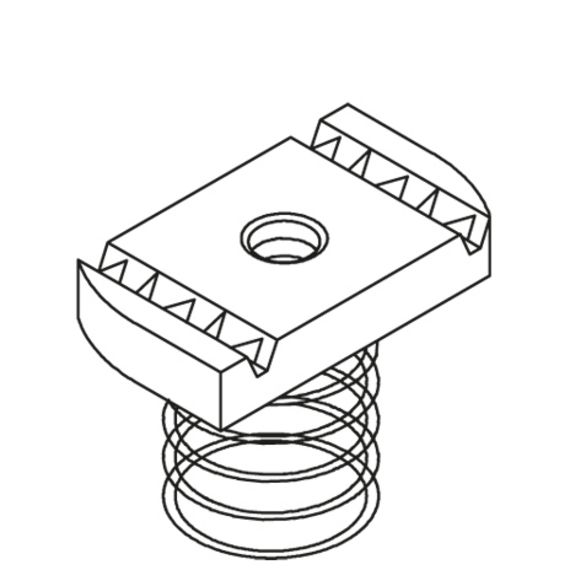

AMF22 channel spring nut, A41, KHA 41, KHAL 41

galvanized, according to DIN EN ISO 19598 / DIN EN ISO 2081
diametert material thicknessweight
AMF22 M66 mm6,00 mm2,8 kg/100
AMF22 M88 mm6,00 mm2,6 kg/100
AMF22 M1010 mm8,00 mm3,5 kg/100
AMF22 M1212 mm9,50 mm4,4 kg/100
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
diametert material thicknessweight
AMF22 M6F6 mm6,00 mm3 kg/100
AMF22 M8F8 mm6,00 mm2,8 kg/100
AMF22 M10F10 mm8,00 mm4,0 kg/100
AMF22 M12F12 mm9,50 mm4,4 kg/100
Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11
diametert material thicknessweight
AMF22 M6E46 mm6,00 mm2,7 kg/100
AMF22 M8E48 mm6,00 mm2,9 kg/100
AMF22 M10E410 mm8,00 mm3,5 kg/100
AMF22 M12E412 mm9,50 mm3,5 kg/100
