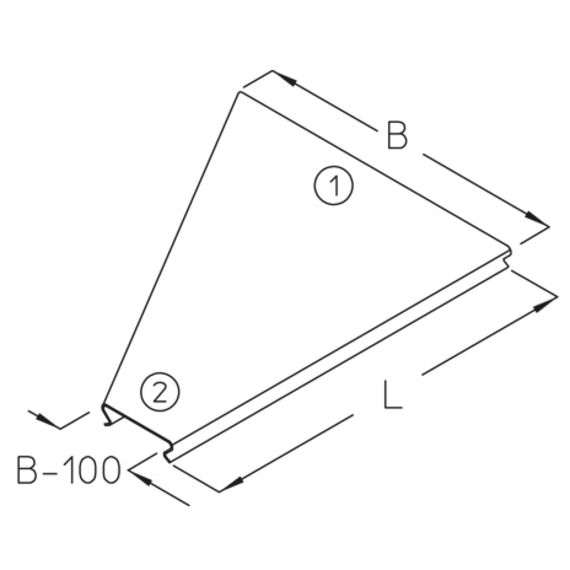

cable tray reducer cover, positive locking
Please quote the design (left, centred, right) and the side width with your order. This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| width | length | weight | ||
|---|---|---|---|---|
| RRD 20S | 200 mm | 500 mm | 0,55 kg | |
| RRD 30S | 300 mm | 500 mm | 1,13 kg | |
| RRD 40S | 400 mm | 500 mm | 1,52 kg | |
| RRD 50S | 500 mm | 500 mm | 2,39 kg | |
| RRD 60S | 600 mm | 500 mm | 2,88 kg |
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| width | length | weight | ||
|---|---|---|---|---|
| RRD 20F | 200 mm | 500 mm | 0,59 kg | |
| RRD 30F | 300 mm | 500 mm | 1,21 kg | |
| RRD 40F | 400 mm | 500 mm | 1,63 kg | |
| RRD 50F | 500 mm | 500 mm | 2,56 kg | |
| RRD 60F | 600 mm | 500 mm | 3,08 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| width | length | weight | ||
|---|---|---|---|---|
| RRD 20E | 200 mm | 500 mm | 0,59 kg | |
| RRD 30E | 300 mm | 500 mm | 1,13 kg | |
| RRD 40E | 400 mm | 500 mm | 1,53 kg | |
| RRD 50E | 500 mm | 500 mm | 2,40 kg | |
| RRD 60E | 600 mm | 500 mm | 2,90 kg |
