Assembly cover with square opening made of sendzimir hot-dip galvanised steel sheet. Can be used instead of a dummy cover to accommodate a double installation unit. Designed for office traffic loads.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| width | length | E1 fitting dimension | E2 fitting dimension | t material thickness | mounting box Maximum number of installable device casings. | weight | |||
|---|---|---|---|---|---|---|---|---|---|
| UEBSMD-185V 30S | 300 mm | 500 mm | 261 mm | 186 mm | 3,00 mm | 2 | 2,63 kg | ||
| UEBSMD-185V 40S | 400 mm | 500 mm | 261 mm | 186 mm | 3,00 mm | 2 | 3,92 kg |
Underfloor systems
Screed flush duct systems

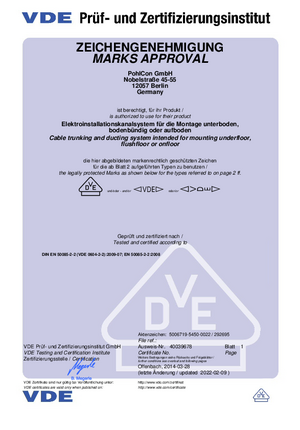

Test certificate for VDE testing according to DIN EN 50085, UEBS, screed-flush trunking system
