UGE3 VE mounting box insert, triple, for installation units made of stainless steel, angular

Mounting box insert made of galvanized sheet steel. For use in a quadrangular installation unit made of stainless steel. With louvers, suitable for the installation of up to 4 installation devices of 45x45 mm and 6 single data jacks. For floor constructions of 85 mm or higher.

Assembly Instruction
Continously hot galvanized (Sendzimir process) (DIN EN 10346)

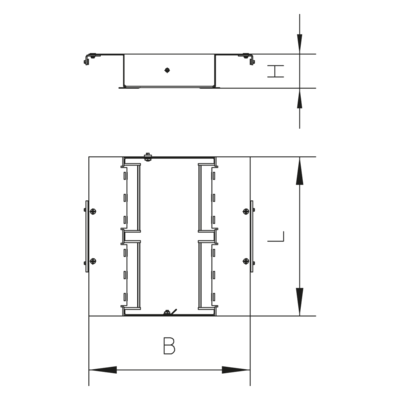

heightHminMinimum installation heightwidthlengthdata jacks Maximum number of installable data jacksinstallation units/outlet socket Maximum number of installable installation devicesweight
UGE3-VE 447 mm85 mm227 mm224 mm6 4x 45x45mm 0,59 kg

Details / Applications

Details / Applications - UGE3 VE
