Quadrangular installation unit with high-grade steel carpet protection frame. Flat surface, blasted. As a cartridge installation frame with lock-in leads for the gradual lowering of up to 3 mounting boxes (9 coulter clip installation devices or 12 installation devices of 45x45 mm) by up to 30 mm, a self-closing hinged cover as cartridge with floor flush cable outlet and a self-closing opening lever, rubber seal and an all-purpose mounting claw set. For installation into floor boxes, assembly covers and raised or hollow floor openings. Suitable for rooms with dry and damp-cleaned floor covers. Designed for office traffic loads.
Assembly Instruction
dry-cleaned
Stainless steel, according to ASTM 304 / BS 304 S 3
| height | HminMinimum installation height | width | length | E fitting dimension | PmaxMaximum load | IPnIP protection level in unused condition | IPgIP protection level in used condition | weight | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UEKDD 15-VP E | 72 mm | 90 mm | 283 mm | 283 mm | 261 x 261 mm | 2 kN | IP 30 | IP 20 | 5,00 kg |

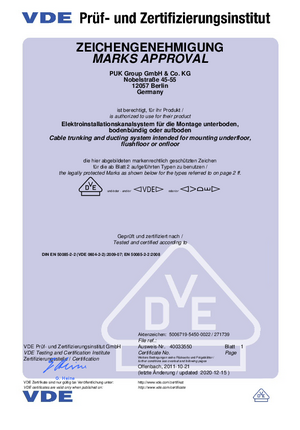

Certificate for VDE testing acc. to DIN EN 50085, UEBD, UEKD, UEKDD, UEK, Installation units
