Quadrangular installation unit made of polyamide with a carpet protection frame. As an assembly frame with sheet steel inlay, including a universal set of fastening claws. For the installation into floor boxes, assembly covers and into raised or hollow floor openings. Suitable for rooms with dry-cleaned floor coverings up to 10 mm. Designed for office traffic loads.
Assembly Instruction
dry-cleaned
Polyamide
| height | HminMinimum installation height | width | length | E fitting dimension | depth | PmaxMaximum load | color | IPnIP protection level in unused condition | weight | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UEB3-V-G | 58 mm | 63 mm | 280 mm | 280 mm | 260x260 mm | 10 mm | 2 kN | RAL 7011 (iron grey) | IP 30 | 1,27 kg | ||
| UEB3-V-S | 58 mm | 63 mm | 280 mm | 280 mm | 260x260 mm | 10 mm | 2 kN | RAL 9011 (graphite black) | IP 30 | 1,27 kg |

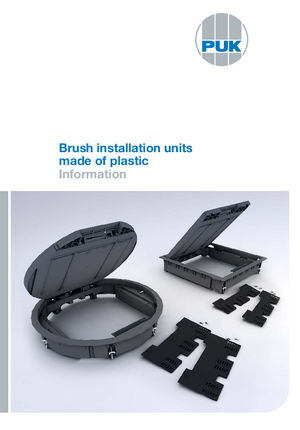

Brush installation units made of plastic - Information
