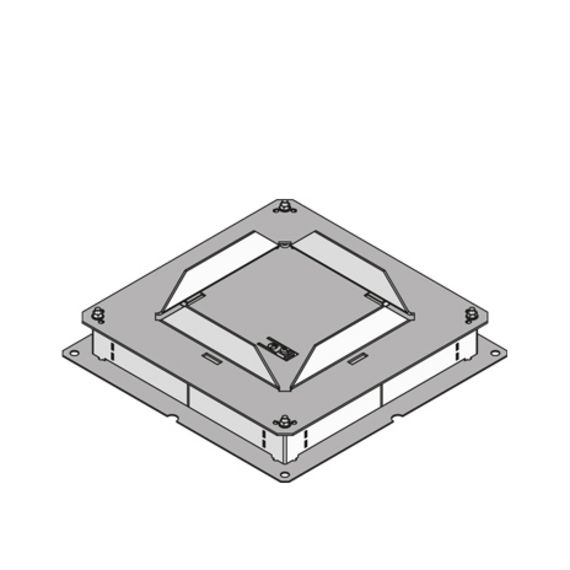

UBDHB190 1V hollow space floor box, single, angular

Hollow space floor box for subsonic-noise free and height-undependable assembly, can be used as pull- and installation box, openings for insertion of a shuttering unit that will be replaced with a dummy cover or a floor flush installation unit during final assembly. Consists of a Sendzimir hot-dip galvanized steel sheet box with four bendable side walls and grounding clamp.

Assembly Instruction
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
heightHminMinimum installation heightwidthwidthlength 1length 2E fitting dimensionmounting box Maximum number of installable device casings.weight
UBDHB190 28-160V31 mm67 mm270 mm290 mm270 mm290 mm165 mmsingle 1,2 kg
UBDHB190 38-160V41 mm77 mm270 mm290 mm270 mm290 mm165 mmsingle 1,9 kg
UBDHB190 48-160V51 mm87 mm270 mm290 mm270 mm290 mm165 mmsingle 2,0 kg

Details / Applications

Details / Applications - UBDHB190 1V
