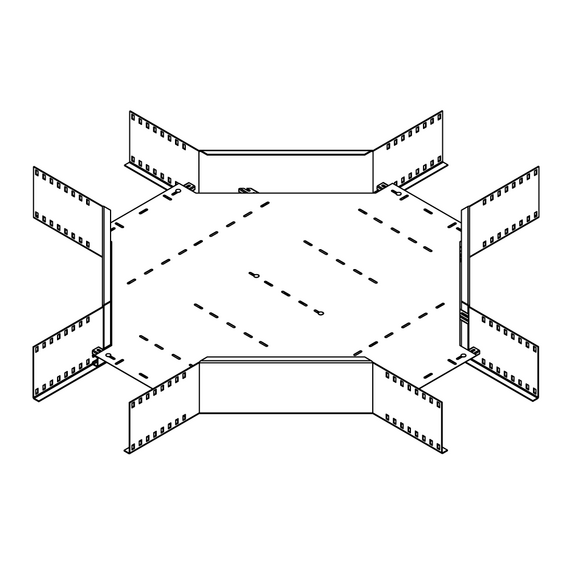

WLRK 200 Wide span cable tray crossing, height = 200 mm

The WLRK 200 wide span cable tray crossing with integrated connectors serves as a molded part for horizontally crossing wide span cable trays. It is suitable for WLR 200 wide span cable trays and has widths from 200 to 600 mm. The cable trays can be inserted with a VB floor connector. Various materials and surfaces ensure that the corrosion protection requirements of a wide range of applications are met.

  • Allows horizontal change of cable routing in four directions
  • Gentle cable guidance
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

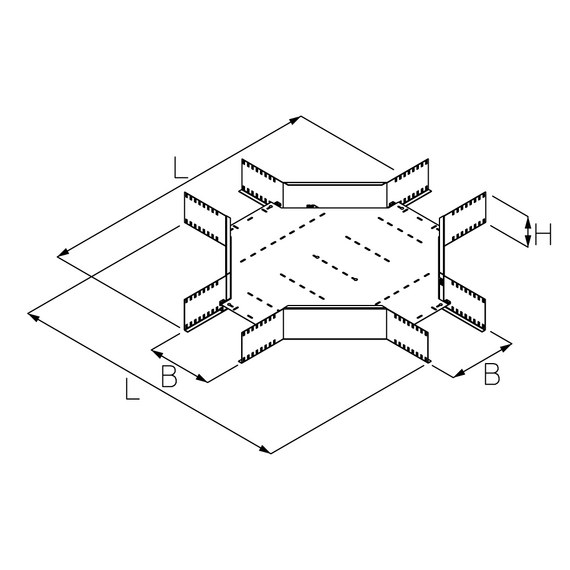

heightwidthlengthweight
WLRK 200-20F208 mm237 mm1667 mm39,11 kg
WLRK 200-30F208 mm337 mm1767 mm41,60 kg
WLRK 200-40F208 mm437 mm1867 mm44,17 kg
WLRK 200-50F208 mm537 mm1967 mm48,67 kg
WLRK 200-60F208 mm637 mm2067 mm51,63 kg

Details / Applications

Details / Applications - WLRK 200
