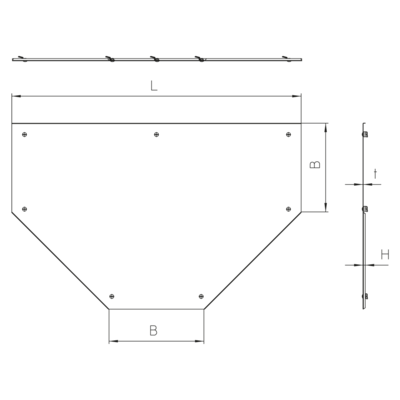

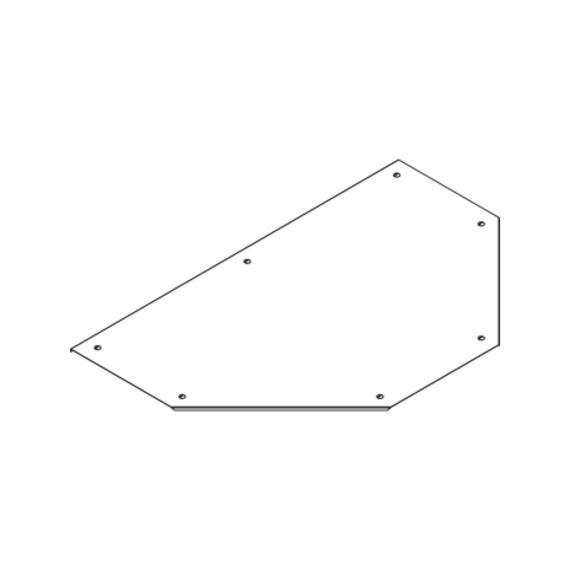

Cover for wide-span cable ladder branch. With additional turning bolts.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| width | length | t material thickness | weight | ||
|---|---|---|---|---|---|
| WLADR 20S | 200 mm | 641 mm | 0,75 mm | 3,26 kg | |
| WLADR 30S | 300 mm | 741 mm | 1,00 mm | 5,71 kg | |
| WLADR 40S | 400 mm | 841 mm | 1,00 mm | 7,26 kg | |
| WLADR 50S | 500 mm | 941 mm | 1,25 mm | 11,19 kg | |
| WLADR 60S | 600 mm | 1041 mm | 1,25 mm | 13,52 kg |
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| width | length | t material thickness | weight | ||
|---|---|---|---|---|---|
| WLADR 20F | 200 mm | 641 mm | 0,75 mm | 3,48 kg | |
| WLADR 30F | 300 mm | 741 mm | 1,00 mm | 6,09 kg | |
| WLADR 40F | 400 mm | 841 mm | 1,00 mm | 7,76 kg | |
| WLADR 50F | 500 mm | 941 mm | 1,25 mm | 11,96 kg | |
| WLADR 60F | 600 mm | 1041 mm | 1,25 mm | 14,46 kg |
