Usable on mesh cable trays with a wire spacing of 100 mm. Universal use of the snap connector for side or bottom connections. Screwless assembly/disassembly. Backlash-free versions for Ø4 mm and Ø4.5 mm wire thickness.
The mesh cable tray locking connector is suitable for mesh cable trays type G 50 for widths up to and including 300 mm and for type G 100 for widths up to and including 200 mm.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| height | length | diameter | weight | ||
|---|---|---|---|---|---|
| GVR 4.0S | 26 mm | 131 mm | 4,0 mm | 0,05 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| height | length | diameter | weight | ||
|---|---|---|---|---|---|
| GVR 4.0E | 26 mm | 131 mm | 4,0 mm | 0,05 kg |
Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11
| height | length | diameter | weight | ||
|---|---|---|---|---|---|
| GVR 4.0E4 | 26 mm | 131 mm | 4,0 mm | 0,05 kg |

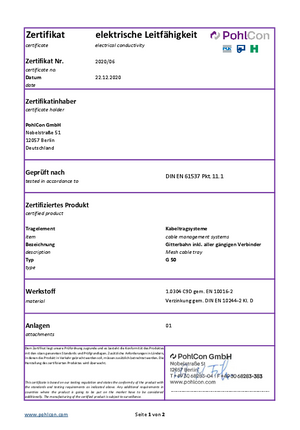

Electric conductivity acc. to DIN EN 61537:2007 Pkt. 11.1 (G with GVR)
