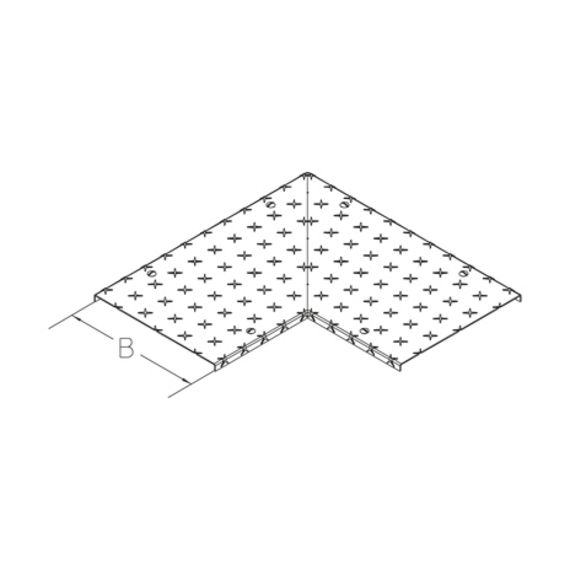

The cover consists of a 2 mm thick galvanized sheet steel with 1 mm non-slip embossing and slip resistance R12 according to DIN 51130. In compliance with the installation specifications and a maximum compartment size of 200 mm, the cover guarantees a tested load capacity of at least 500 kg according to EN 50085-2-2.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| width | t material thickness | PmaxMaximum load | slip resistance class slip resistance according to DIN 51130 | weight | |||
|---|---|---|---|---|---|---|---|
| BKBGDR-RHP 10S | 100 mm | 2,00 mm | 5 kN | R12 | 1,27 kg | ||
| BKBGDR-RHP 15S | 150 mm | 2,00 mm | 5 kN | R12 | 1,86 kg | ||
| BKBGDR-RHP 20S | 200 mm | 2,00 mm | 5 kN | R12 | 2,53 kg | ||
| BKBGDR-RHP 30S | 300 mm | 2,00 mm | 5 kN | R12 | 4,10 kg | ||
| BKBGDR-RHP 40S | 400 mm | 2,00 mm | 5 kN | R12 | 5,99 kg | ||
| BKBGDR-RHP 50S | 500 mm | 2,00 mm | 5 kN | R12 | 8,19 kg | ||
| BKBGDR-RHP 60S | 600 mm | 2,00 mm | 5 kN | R12 | 10,7 kg |
