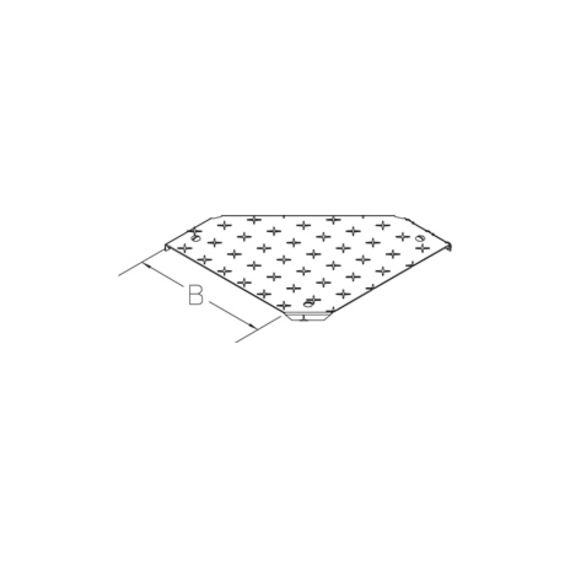

BKBDR-RHP floor duct bend cover with non-slip embossing

The cover consists of a 2 mm thick galvanized sheet steel with 1 mm non-slip embossing and slip resistance R12 according to DIN 51130. In compliance with the installation specifications and a maximum compartment size of 200 mm, the cover guarantees a tested load capacity of at least 500 kg according to EN 50085-2-2.

Continously hot galvanized (Sendzimir process) (DIN EN 10346)
widtht material thicknessPmaxMaximum loadslip resistance class slip resistance according to DIN 51130weight
BKBDR-RHP 10S100 mm2,00 mm5 kNR12 0,36 kg
BKBDR-RHP 15S150 mm2,00 mm5 kNR12 0,65 kg
BKBDR-RHP 20S200 mm2,00 mm5 kNR12 0,94 kg
BKBDR-RHP 30S300 mm2,00 mm5 kNR12 1,75 kg
BKBDR-RHP 40S400 mm2,00 mm5 kNR12 2,84 kg
BKBDR-RHP 50S500 mm2,00 mm5 kNR12 4,18 kg
BKBDR-RHP 60S600 mm2,00 mm5 kNR12 5,78 kg
