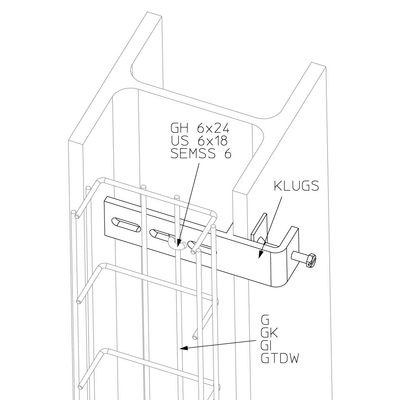

Clamp fastener, vertical, for clamping mesh cable trays and cable trays to steel girders;
Tightening torque: 10Nm
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
height | width | width | t material thickness | k clamping range | PmaxMaximum load | weight | ||
---|---|---|---|---|---|---|---|---|
KLUGS 10F | 52 mm | 100 mm | 149 mm | 6 mm | 5 – 33 mm | 0,5 kN | 0,457 kg | |
KLUGS 20F | 52 mm | 200 mm | 249 mm | 6 mm | 5 – 33 mm | 0,4 kN | 0,621 kg | |
KLUGS 30F | 52 mm | 300 mm | 349 mm | 6 mm | 5 – 33 mm | 0,2 kN | 0,789 kg |
Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11
height | width | width | t material thickness | k clamping range | PmaxMaximum load | weight | ||
---|---|---|---|---|---|---|---|---|
KLUGS 10E | 52 mm | 100 mm | 149 mm | 6 mm | 5 – 33 mm | 0,5 kN | 0,420 kg | |
KLUGS 20E | 52 mm | 200 mm | 249 mm | 6 mm | 5 – 33 mm | 0,4 kN | 0,578 kg | |
KLUGS 30E | 52 mm | 300 mm | 349 mm | 6 mm | 5 – 33 mm | 0,2 kN | 0,735 kg |
